Threaded Messages Header - CometChat Docs

AI Agent Component Spec

{
  "component": "CometChatThreadedHeader",
  "package": "cometchat_chat_uikit",
  "import": "import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';",
  "description": "A widget that displays the parent message of a thread along with a reply count, used as the header section in threaded message views",
  "primaryOutput": {
    "prop": "messageActionView",
    "type": "Widget Function(BaseMessage message, BuildContext context)?"
  },
  "props": {
    "data": {
      "parentMessage": {
        "type": "BaseMessage",
        "required": true,
        "note": "Parent message for the thread"
      },
      "loggedInUser": {
        "type": "User",
        "required": true,
        "note": "Logged in user object"
      },
      "template": {
        "type": "CometChatMessageTemplate?",
        "default": "null",
        "note": "Message template used in the thread"
      },
      "height": {
        "type": "double?",
        "default": "null",
        "note": "Height of the widget"
      },
      "width": {
        "type": "double?",
        "default": "null",
        "note": "Width of the widget"
      }
    },
    "visibility": {
      "receiptsVisibility": {
        "type": "bool?",
        "default": true
      }
    },
    "viewSlots": {
      "messageActionView": "Widget Function(BaseMessage message, BuildContext context)?"
    }
  },
  "events": [],
  "sdkListeners": [],
  "compositionExample": {
    "description": "CometChatThreadedHeader is typically used within CometChatThreadedMessages as the header component",
    "components": ["CometChatThreadedMessages", "CometChatMessageList", "CometChatMessageComposer"],
    "flow": "Parent message displayed at top → Reply count shown → Message list below with replies"
  },
  "types": {}
}

Where It Fits

CometChatThreadedHeader is a component that displays the parent message of a thread along with a reply count. It’s typically used as part of the ThreadedMessages composite component, appearing at the top of the threaded conversation view. ThreadedMessages is composed of the following widgets:

Widget	Description
MessageList	CometChatMessageList displays a list of reply messages
MessageComposer	CometChatMessageComposer helps in writing and sending replies

Minimal Render

The simplest way to render CometChatThreadedHeader:

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';

CometChatThreadedHeader(
  parentMessage: parentMessage,  // Required: BaseMessage object
  loggedInUser: loggedInUser,    // Required: User object
)

You can also launch it using Navigator:

Dart

Navigator.push(
  context,
  MaterialPageRoute(
    builder: (context) => CometChatThreadedHeader(
      loggedInUser: loggedInUser,
      parentMessage: parentMessage,
    ),
  ),
);

Or embed it as a widget:

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class ThreadMessages extends StatefulWidget {
  const ThreadMessages({super.key});

  @override
  State<ThreadMessages> createState() => _ThreadMessagesState();
}

class _ThreadMessagesState extends State<ThreadMessages> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        child: CometChatThreadedHeader(
          loggedInUser: loggedInUser,
          parentMessage: parentMessage,
        ),
      ),
    );
  }
}

Actions and Events

Callback Props

The CometChatThreadedHeader component does not have traditional callback props. Instead, it provides a messageActionView slot for customizing the action area.

Global UI Events

The CometChatThreadedHeader component does not produce any global UI events.

Custom View Slots

Customize the appearance of CometChatThreadedHeader by replacing default views with your own widgets.

Slot	Signature	Replaces
`messageActionView`	`Widget Function(BaseMessage message, BuildContext context)?`	Reply count section below the message bubble

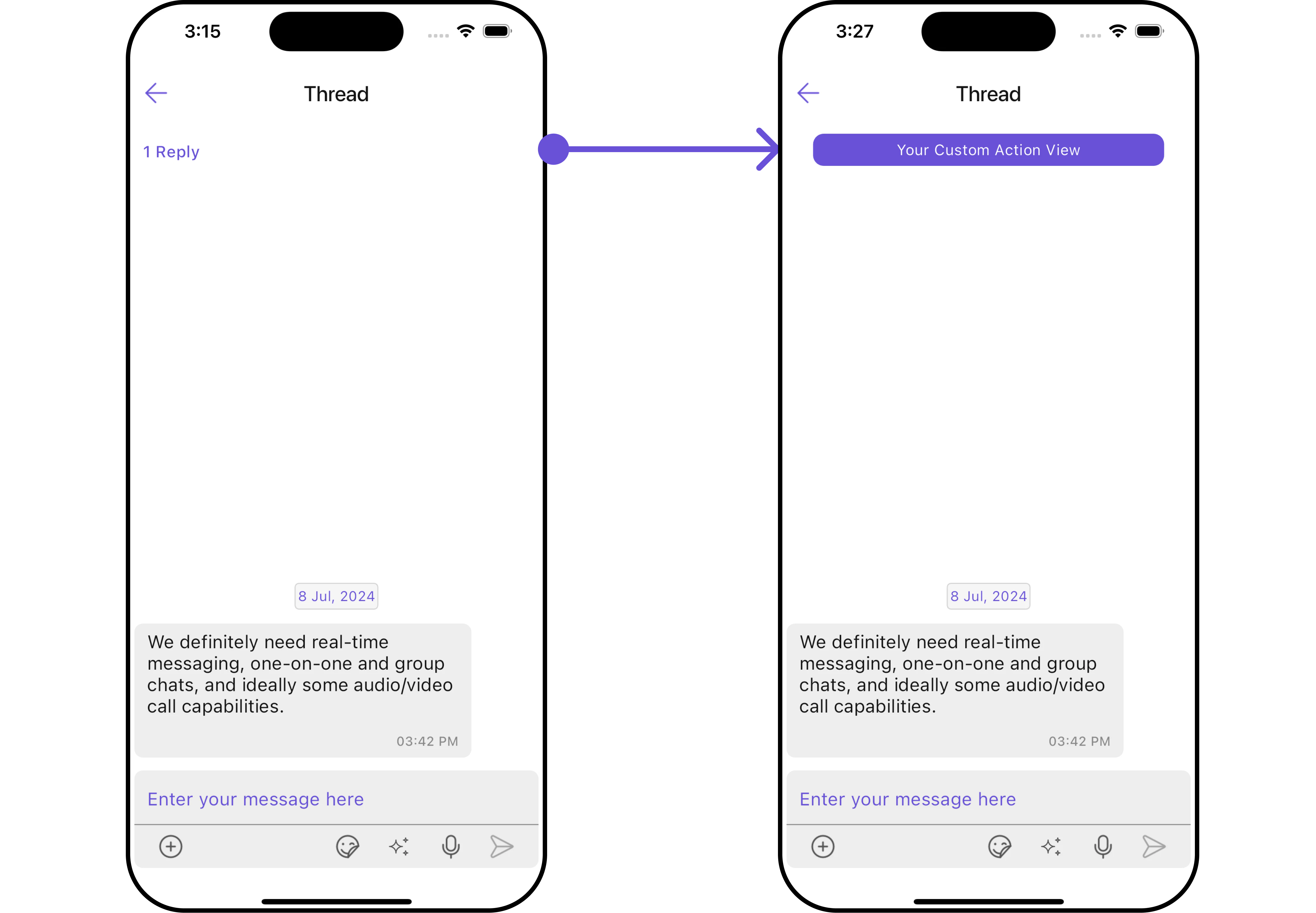

Example: Custom Message Action View

Dart

CometChatThreadedHeader(
  loggedInUser: loggedInUser,
  parentMessage: parentMessage,
  messageActionView: (BaseMessage baseMessage, BuildContext context) {
    return Container(
      width: MediaQuery.of(context).size.width / 1.2,
      margin: const EdgeInsets.all(10),
      decoration: BoxDecoration(
        color: Color(0xFF6851D6),
        borderRadius: BorderRadius.circular(10),
        border: Border.all(width: 5, color: Color(0xFF6851D6)),
      ),
      child: const Center(
        child: Text(
          "Your Custom Action View",
          style: TextStyle(color: Colors.white),
        ),
      ),
    );
  },
)

Android
iOS

Example: Custom Reply Count with Dividers

Dart

CometChatThreadedHeader(
  parentMessage: message,
  loggedInUser: CometChatUIKit.loggedInUser!,
  style: CometChatThreadedHeaderStyle(
    bubbleContainerBackGroundColor: Color(0xFFFEEDE1),
    outgoingMessageBubbleStyle: CometChatOutgoingMessageBubbleStyle(
      backgroundColor: Color(0xFFF76808),
      borderRadius: BorderRadius.circular(12),
    ),
  ),
  messageActionView: (message, context) {
    final numberOfReplies = message.replyCount;
    String replyText = numberOfReplies == 1
        ? Translations.of(context).reply
        : Translations.of(context).replies;
    return Container(
      width: double.maxFinite,
      color: Color(0xFFFEEDE1),
      padding: EdgeInsets.symmetric(vertical: 4),
      child: Row(
        children: [
          Flexible(child: Divider(color: Color(0xFFF76808))),
          Padding(
            padding: EdgeInsets.symmetric(horizontal: 8),
            child: Text(
              "$numberOfReplies $replyText",
              style: TextStyle(
                color: Color(0xFFF76808),
                fontSize: 14,
                fontWeight: FontWeight.w400,
              ),
            ),
          ),
          Flexible(child: Divider(color: Color(0xFFF76808))),
        ],
      ),
    );
  },
)

Templates

The template prop is used to configure and set a message template for the parent message bubble. It allows for dynamic customization of message appearance, content, or other predefined settings based on the template provided.

Dart

CometChatThreadedHeader(
  parentMessage: parentMessage,
  loggedInUser: loggedInUser,
  template: CometChatMessageTemplate(
    type: MessageTypeConstants.text,
    category: MessageCategoryConstants.message,
    // Custom template configuration
  ),
)

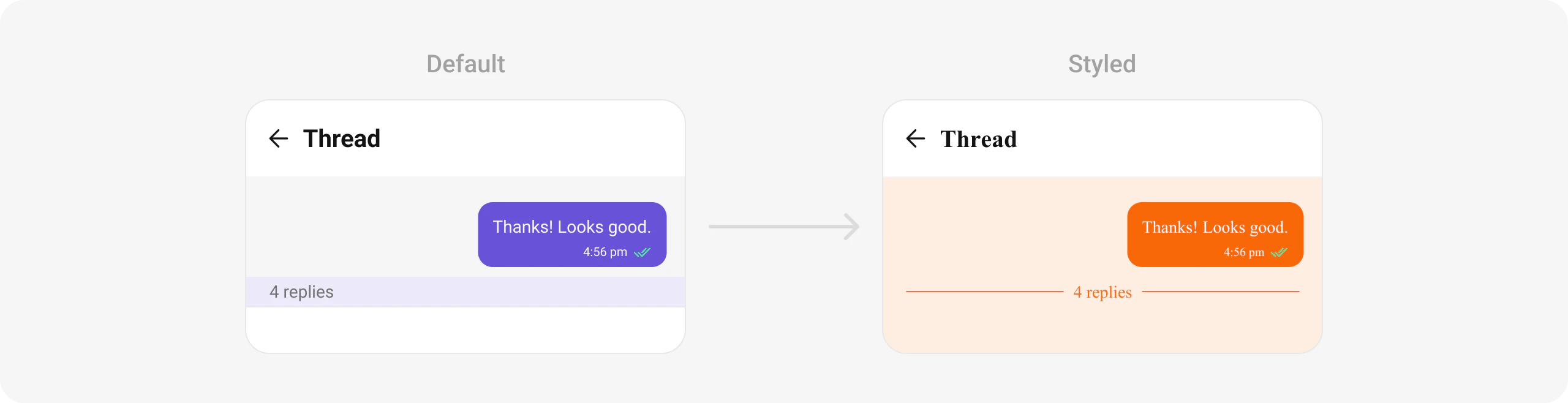

Styling

Customize the appearance of CometChatThreadedHeader using CometChatThreadedHeaderStyle.

Dart

CometChatThreadedHeader(
  parentMessage: parentMessage,
  loggedInUser: loggedInUser,
  style: CometChatThreadedHeaderStyle(
    bubbleContainerBackGroundColor: Color(0xFFFEEDE1),
    countTextColor: Colors.purple,
    countContainerBackGroundColor: Colors.grey[100],
    incomingMessageBubbleStyle: CometChatIncomingMessageBubbleStyle(
      backgroundColor: Colors.grey[200],
    ),
    outgoingMessageBubbleStyle: CometChatOutgoingMessageBubbleStyle(
      backgroundColor: Color(0xFFF76808),
      borderRadius: BorderRadius.circular(12),
    ),
  ),
)

Style Properties

Property	Type	Description
`bubbleContainerBackGroundColor`	`Color?`	Background color for the bubble container
`bubbleContainerBorder`	`BoxBorder?`	Border for the bubble container
`bubbleContainerBorderRadius`	`BorderRadiusGeometry?`	Border radius for the bubble container
`countTextStyle`	`TextStyle?`	Text style for the reply count
`countTextColor`	`Color?`	Color for the reply count text
`countContainerBackGroundColor`	`Color?`	Background color for the count container
`countContainerBorder`	`BoxBorder?`	Border for the count container
`constraints`	`BoxConstraints?`	Constraints for the message container
`incomingMessageBubbleStyle`	`CometChatIncomingMessageBubbleStyle?`	Style for incoming message bubble
`outgoingMessageBubbleStyle`	`CometChatOutgoingMessageBubbleStyle?`	Style for outgoing message bubble

Props Reference

Prop	Type	Default	Description
`parentMessage`	`BaseMessage`	Required	Parent message for the thread
`loggedInUser`	`User`	Required	Logged in user object
`messageActionView`	`Function(BaseMessage, BuildContext)?`	`null`	Custom action view for the message
`style`	`CometChatThreadedHeaderStyle?`	`null`	Style parameter for the threaded header
`template`	`CometChatMessageTemplate?`	`null`	Message template used in the thread
`height`	`double?`	`null`	Height of the widget
`width`	`double?`	`null`	Width of the widget
`receiptsVisibility`	`bool?`	`true`	Controls visibility of receipts
